Metal Roof & Industrial Shed Roof Waterproofing Systems
Metal roof waterproofing plays a vital role in protecting industrial sheds, factories, warehouses, and commercial buildings from water leakages, corrosion, and weather damage. Most industrial sheds are built using corrugated metal sheets, aluminum panels, or sandwich panels, which are lightweight and durable, but over time they face leakage issues due to screw holes, joints, thermal expansion, and UV exposure. Applying a proper waterproofing system helps in extending roof life, improving durability, and reducing heat transmission inside the building.
1. Polyurethane (PU) Liquid Waterproofing System:
The PU liquid-applied waterproofing system is one of the most advanced and flexible solutions for metal roofs. It forms a seamless and jointless membrane that completely adheres to the surface, providing long-term protection against water ingress. The system starts with surface cleaning and rust removal, followed by a PU-based primer to ensure perfect bonding. A base coat of PU coating is then applied by brush, roller, or spray, with reinforcement fabric at joints, overlaps, and screw areas for extra strength. Finally, a PU UV-resistant top coat is applied to protect the membrane from sunlight and weathering.
This system is highly durable, UV-resistant, and elastic — making it ideal for roofs that experience expansion and contraction due to temperature changes. It can also withstand ponding water and strong wind uplift.
2. Polyurea Spray Waterproofing System
The polyurea coating system is considered the most durable and high-performance waterproofing option for industrial metal roofs. It is a 100% seamless spray-applied elastomeric membrane that cures within seconds after application. The system includes a surface primer, a polyurea spray layer (1.5–2 mm thick), and a PU UV top coat.
Polyurea provides outstanding tensile strength, chemical resistance, and flexibility, capable of withstanding heavy thermal movement and mechanical stress. It’s ideal for large-scale industrial sheds and metal structures that require long-term protection and minimal maintenance. With a life expectancy of 20–25 years, this system ensures complete waterproofing and durability under extreme climatic conditions.
3. Acrylic Elastomeric Coating System
The acrylic elastomeric waterproofing system is a cost-effective and reflective coating suitable for light-duty metal roof applications. It is applied using brushes or rollers in multiple coats to achieve the required thickness. The system includes surface cleaning, primer coat, and two or more coats of acrylic elastomeric membrane.
Acrylic coatings offer good flexibility, UV resistance, and excellent solar reflectivity, which helps reduce heat absorption and lowers internal building temperature. Although not as strong as PU or polyurea systems, it is an economical option for preventive maintenance or where full waterproofing protection is not heavily required.
5. Combo Roof System (PU Foam + Coating)

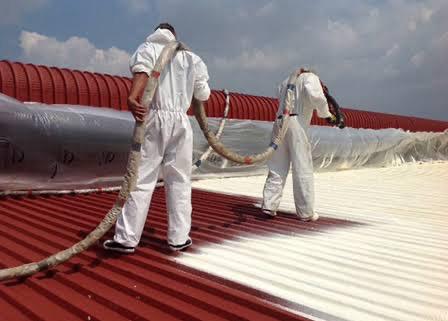

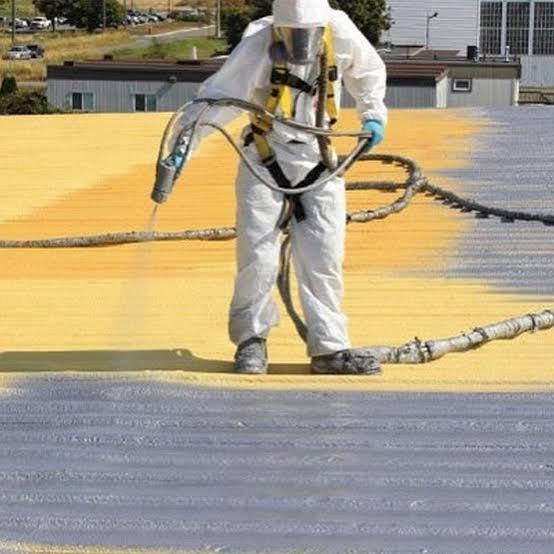

For metal sheds that suffer from both heat transfer and leakage, the Combo Roof System is the most recommended solution. This system combines PU Foam Insulation with protective waterproof coatings. The PU foam is sprayed over the metal sheets at a thickness of 50–75 mm to form a thermal insulation layer, preventing heat from entering the building. Over the foam, a polyurea or PU waterproof coating is applied to seal the surface, and finally, a UV-resistant PU top coat is used for long-term protection.
This combined system delivers triple protection — thermal insulation, waterproofing, and UV stability — reducing internal temperature and saving on cooling costs. It is seamless, highly durable, and widely used in modern industrial roofing systems.
6. Sealant & Joint Treatment System
Often, metal roof leakages begin from screw holes, overlaps, or gutter joints. In such cases, a sealant-based joint waterproofing system is used. The process involves cleaning the surface, removing rust, and applying a polyurethane or MS polymer sealant into all joints, screw heads, and overlaps. Sometimes, a reinforcement tape or mesh is added for additional strength.
This method is quick, effective, and economical — suitable for maintenance or localized repairs where full roof coating is not required.
7. Fiber-Reinforced Coating System
Fiber-reinforced coatings combine liquid waterproofing materials with fiber mesh to enhance the system’s strength and crack resistance. The fibers within the coating provide structural reinforcement, allowing the system to withstand movement in the metal panels without cracking. It’s particularly useful for gutters, overlaps, and larger panel joints on metal sheds.
General Application Stages
1. Complete surface cleaning and rust removal.
2. Degreasing and preparation of joints, screws, and overlaps.
3. Application of primer for bonding.
4. Waterproofing membrane or spray coating.
5. UV-protective top coat for final protection and reflection.
Each stage must be carried out under proper surface dryness and temperature conditions to ensure adhesion and long-term performance.
Recommended Premium System: Dry Zone TriShield Roof Protection System:
For superior, long-lasting performance, Dry Zone TriShield Roof Protection System is the best choice for industrial sheds. This advanced roofing solution includes PU Foam Insulation, Polyurea Waterproof Coating, and a PU UV Top Coat. Together, these layers provide unmatched insulation, waterproofing, and UV protection in a single integrated system. It is ideal for UAE’s harsh climate, extending the life of the metal roof while improving thermal efficiency and energy savings.
